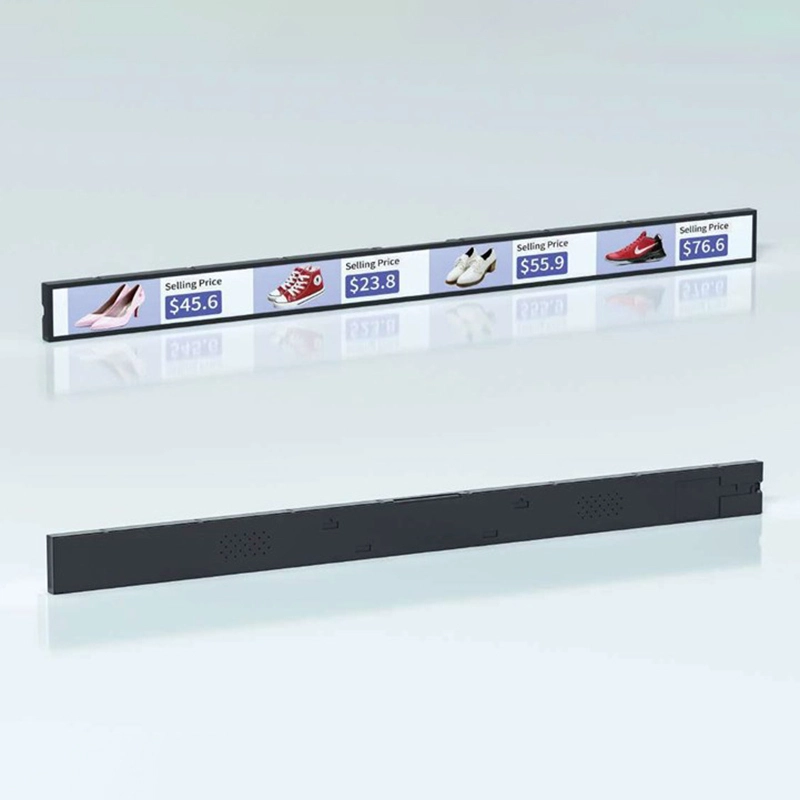

Highlight HL3500 Strip Shelf Display 35''
Active Screen Size：880.4(H) x 50(V)mm
Pixels [lines]：2880x158
Luminance, White：400cd/m2 (Typ.)
Viewing Angle：89/89/89/89(up/down/left/right)
Outline Dimension：891.6(H) x 60.4(V) x 15.8(D)mm
Input Power Frequency：AC100-240V@50/60Hz
OS：Android 5.1.1 Above
Image：JPG,JPEG,BMP,PNG,GIF
Video：mkv, wmv, mpg, mpeg, dat, avi, mov, iso, mp4, rm
Audio：MP3, AAC, WMA, RM, FLAC, Ogg
Strip shelf display is generally used in retail stores, supermarkets, chain stores, and other places, installed at the edge of shelves to display product prices, pictures, promotional information, and other content. It is played in a loop through a set program to attract consumers to better understand product information and promote consumer purchases. Our strip shelf display adopts LCD technology, which has features such as high-definition, high brightness, multi-color, and low power consumption. Through the management software in the background, we can set the display content and frequency of strip shelf display. A complete strip shelf display system, including strip shelf display, Base Station (Access point) and backend management software.Through cloud software systems, information can be sent to the Access point (base Station) in the store, allowing for efficient and convenient modification of all strip shelf display. At the same time, our strip shelf display can be perfectly integrated with the POS system ERP system through API and SDK, allowing data to be integrated into other systems of customers for comprehensive utilization.
Our advantage
A commercial display with a stretched screen to best match shelves. lt is widely used in places where there is high potential to advertise merchandise on shelves. lt creates an ultra-wide view to formulate a big variety of product presentations.
Product parameter
Display | Pixels | 2880x158 |
Active Screen Size | 880.4(H) x 50(V)mm | |
Luminance, White | 400cd/m2 (Typ.) | |
Contrast | 1000:1 | |
Viewing Angle | 89/89/89/89(up/down/left/right） | |
Life Time | 30,000 hours | |
Mechanical | Outline Dimension | 891.6(H) x 60.4(V) x 15.8(D)mm |
Possible Display Type | Landscape / Portrait | |
Cabinet Color | Black | |
| Power Supply | Input Power Frequency | AC100-240V@50/60Hz |
Output Voltage | 12V | |
Output Current | 2A | |
System | OS | Android 5.1.1 Above |
CPU | Quad-core ARM, Cortex-A55×4,1.9GHz | |
RAM | 2GB | |
Storage | 8GB | |
Network | WLan 802.11 b/g/n (2.4GHz) / WIFI 802.11a/n (5GHz) | |
Bluetooth | BT 4.2 | |
Connectivity | Mini USB, Mini RJ45, Type-C (power only） | |
Video Format | Image | JPG, JPEG, BMP, PNG, GIF |
Video | mkv, wmv, mpg, mpeg, dat, avi, mov, iso, mp4, rm | |
Audio | MP3, AAC, WMA, RM, FLAC, Ogg | |
Environmental | Operation Temperature | 0°C~45°C |
Operation Humidity | 10~80%RH | |
Storage Temperature | -20°C~60°C | |
Warranty | 12 months |
Scene application
Shelf Edge LCD Display
