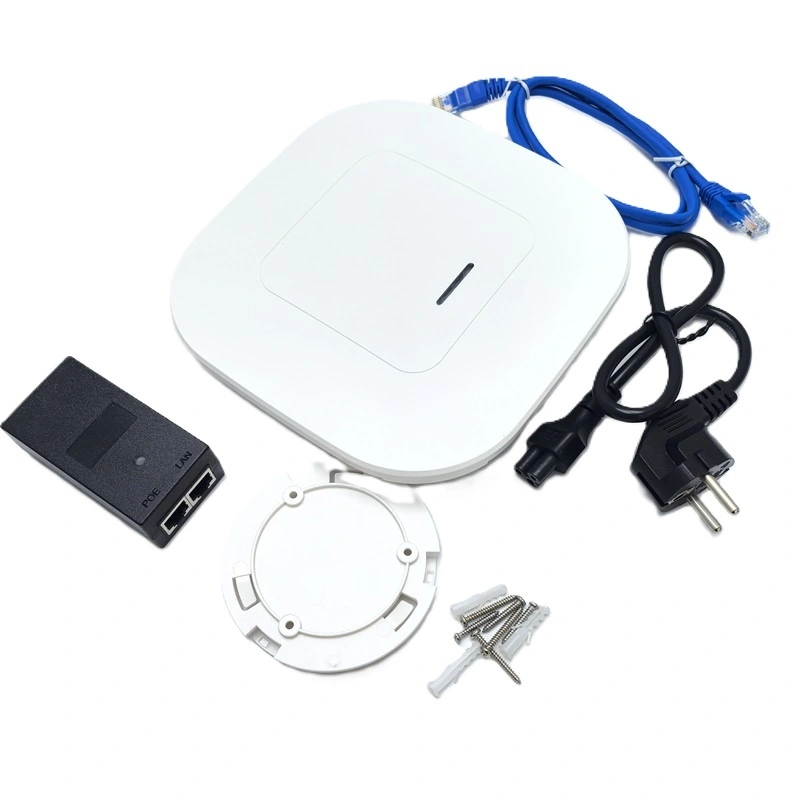

Highlight HPC169 AP (Base Station/ Accesspoint) for ESL price tag
ABOUT HIGHLIGHT
Highlight is a professional Electronic Shelf Labels / Electronic Article Surveillance/ People Counter supplier/ Provider / Manufacturer with over 20+ years’ experience in China.
Welcome to join us, we will absolutely be your professional and excellent partner.
More than 60 models Electronic Shelf Labels from 1.54'' to 2.13'', 2.4'', 2.66'', 3.7'', 4.2'', 5.8'', 7.3''...till 13.3'' are available and it keeps increasing. As for the colors, we have 2 colors, 3 colors, 4 colors till 10 colors, now in China you can have a check, very few manufacturers can make so many sizes and colors.
More than 30 software engineers are ready to support you at any time. The integration is much easier. We have helped many customers finish the integration successfully in various industries all over the world.
Laptop/PC
Hardware connection (for a local network hosted by a laptop or PC)
Connect the WAN port of the AP to the PoE port on the AP adapter, and connect the LAN port of the AP to the computer.
Cloud/Custom Server
Hardware connection (for connection to a cloud/custom server via network)
AP connects to PoE port on the AP adapter, and the adapter connects to an network
through a router/PoE switcher.
Advanced Characteristics
Labels supported
| Within AP detection radius, no limit on label counts |
ESL Roaming
| Supported |
Load balancing
| Supported |
Log alert
| Supported |
Task overview
Laptop/PC （Windows） | Cloud/Custom Server |
Hardware connection |
Logon AP setting page to assign server address to the AP |
Set IP address for laptop/PC |
Hardware connection |
Logon AP setting page to assign server address to the AP |
Wireless Characteristics
BLE Standard
| BLE 5.0
|
Encryption
| 128-bit AES
|
ESL operating frequency
| 2.4-2.4835GHz
|
Coverage Range
| Up to 23 meters indoors, up to 100 meters outdoors |
Advanced Characteristics
Labels supported
| Within AP detection radius, no limit on label counts |
ESL Roaming
| Supported |
Load balancing
| Supported |
Log alert
| Supported |
Physical Characteristics
LAN Port | 1*10/100/1000M Gigabit |
Power | 48V DC/0.32A IEEE 802.3af(PoE) |
Dimension | 180*180*34mm |
Mounting | Ceiling Mount / Wall Mount |
Certification | CE/RoHS |
Max Power Consumption | 12W |
Working temperature | -10℃-60℃ |
Working Humidity | 0%-95% non-condensing |
Why use ESL Digital shelf label?
Digital shelf label gets rid of the cumbersome workflow of manually changing commodity information, and realizes the consistency and synchronization of commodity information on the shelf and POS cashier system information.
By using digital shelf label, the system can automatically change the price, realize automatic price management, reduce manpower and consumables, and optimize management process. Besides, flexible and fast marketing activities can be carried out online.
