Highlight HPC168 3D Automatic passenger counting camera for bus

HPC168 Passenger Counting Camera Advantages

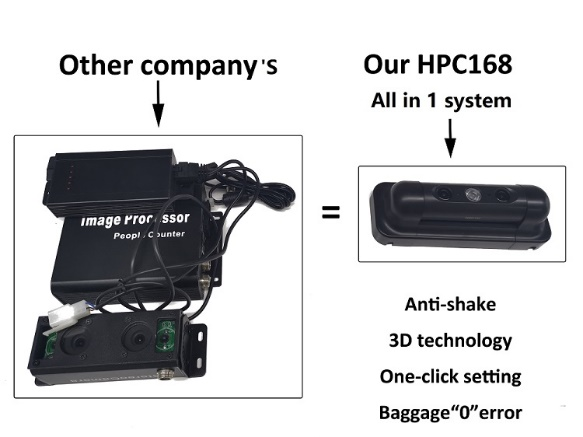

1. Easy to install, plug and play, fully considering the convenience of the installer, we designed the Passenger counting camera as an all in 1 system, the whole set of equipment has only one hardware part, and the installation is very convenient. However, other companies use a sensor plus a processor, plus other modules, and a lot of connecting lines between them are needed, and the installation is very cumbersome.

2. The price of our passenger counting camera is lower. If a bus only installs a passenger counting camera on one door, the cost of our all in 1 system passenger counting camera will be far lower than that of other companies, because the 3D Automatic Passenger Counting Camera  of other companies need a sensor plus an expensive Processor and then a lot of wires.

3. The calculation speed is fast, whether installing a passenger counting camera on one door or installing multiple passenger counting cameras on multiple doors, since each of our passenger counting cameras has a built-in processor, it is equivalent to several brains performing independent calculations at the same time, In this way, our calculation speed is 2-3 times faster than other companies' 3D Automatic Passenger Counting Camera calculation speed. In addition, we use the latest chips, and the speed will be far better than that of the other competitors. Generally speaking, the number of vehicles in the bus system is hundreds or even thousands of vehicles, the calculation speed of the passenger counting camera will become a very critical factor for the normal operation of the entire system.

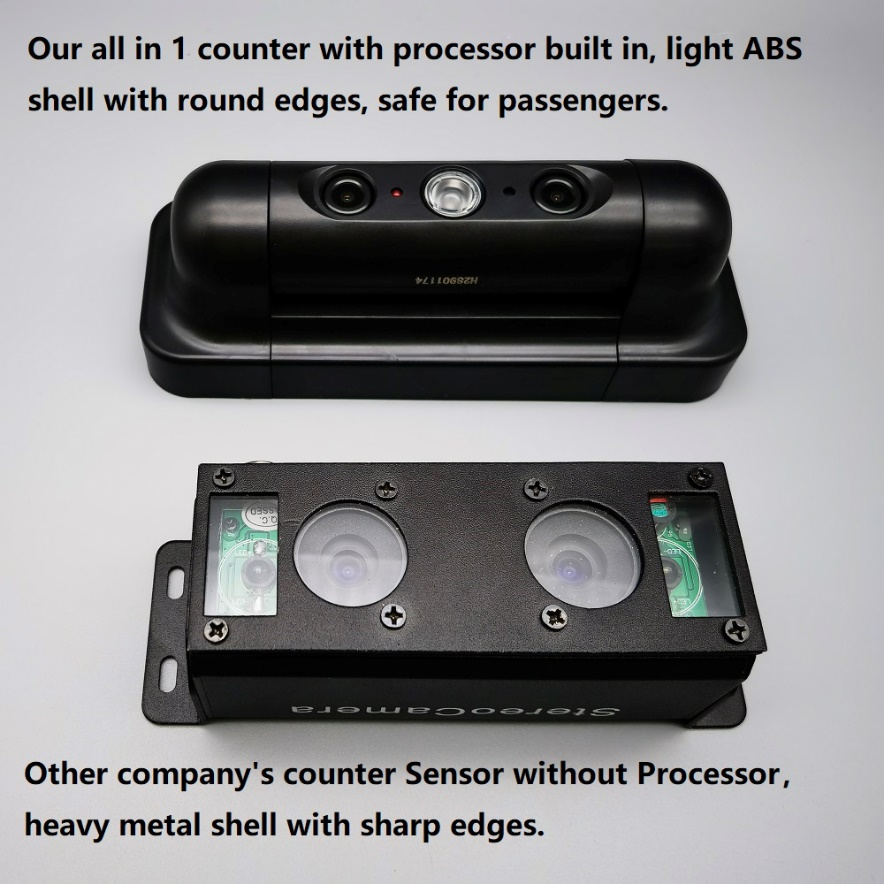

4.Our passenger counting camera is made of ABS plastic shell, and the Processor is also integrated in the shell, so the total weight is very light, our weight is only one-fifth or even less than other passenger counting cameras on the market, in this case, your Shipping costs will save a lot especially by air. While the sensor of other companies uses a heavy metal casing, the Processor also uses a heavy metal casing. The combination of the two will make the whole equipment heavier, which will lead to very expensive air freight, which will directly lead to the customer's purchase cost, the cost is greatly increased, and the sharp edges and corners of the metal shell will also pose a potential threat to passengers.

5. The shell of the HPC168 People counting is made of high-strength ABS. First, the car can be used normally in the vibration and bumpy environment during driving. Secondly, the shell adopts an integrated design. The bracket used for fixing is uniquely designed and supports 180° degree angle rotation installation, flexible and durable.

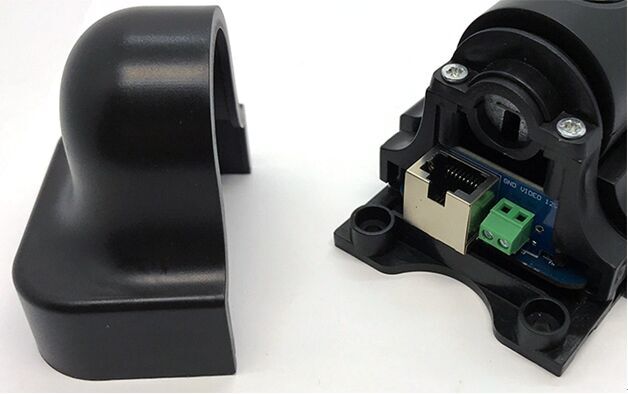

6. In order to prevent the People counting from colliding with the passenger’s head during driving, the shell of our passenger counting camera is made of ABS plastic, and the appearance adopts a circular arc design. At the same time, all the connecting lines are concealed. No connection can be seen from the outside. It is beautiful and durable while avoiding unnecessary disputes with passengers.

7. Passenger counting camera has a built-in dedicated video hardware acceleration engine, high-performance communication media processor, adopts a self-developed dual-camera 3D depth algorithm model, and dynamically detects the cross-section, height, and movement trajectory of passengers to obtain high-precision real-time passenger flow quantitative data.

8. 3D Automatic Passenger Counting Camera is not affected by seasons and weather, people's shadows or shadows, and external light. It automatically activates infrared supplementary light at night and has the same recognition accuracy. Therefore, it can be installed outdoors or outside the car. Provide more options for actual needs, if you need to install it outdoors, you need to add a waterproof cover.

9. Our equipment will provide one-way RJ45, one-way RS485 and one-way video output, a complete supporting overall solution, which can be directly connected to the transport platform through the network cable, browse report data through the cloud platform, and also provide private server interface program or secondary development Secondary development of data (we will provide API and Protocol), if you use our "data box", you will be able to quickly deploy an independent report statistics system and TV display system, if you connect a monitor, you will be able to directly view and monitor statistical data and dynamics video images.

10. The door opening and closing status of the Bus is the condition to trigger the passenger counting camera to count. When the door is opened, it will start counting, and the data will be counted in real time. When the door is closed, it will stop counting.

11. The accuracy of our 3D Automatic Passenger Counting Camera is not affected by passenger height, clothing color, hair color, hat scarf, etc.; it is also not affected by passengers passing side by side, crossing traffic, blocking traffic; it will not repeatedly count objects such as suitcases, and at the same time The height of the detected target can be limited by software, and the specific data of the desired height can be filtered and extracted.

12. Our Passenger counting camera has a unique one-click adjustment function, which provides the installer with a convenient debugging method of one-click calibration. After installation, the installer only needs to click a button, passenger counting camera will automatically adjust parameters according to the specific height and actual installation environment which saves a lot of installation and debugging time for the installer.

13. If you have any customized needs, or our existing products cannot meet your needs, our technical team will provide you with customized products one-on-one.

More functions of HPC168 passenger counting camera

• One-click setting: touch the white button, the adjustment will be finished automatically in 5 seconds, you even don’t need to connect computer to make the adjustment. (please don’t stand under the counter when setting)
• Built-in image anti-shake algorithm, strong environment adaptability;
• Algorithm correction function, adaptive lens angle, focus information, allowing a certain angle tilt with the horizontal direction;
• Counting accuracy is not affected by passenger body form, clothing color, hair color, hat and scarf, etc.
• Counting accuracy is not affected by passengers passing side by side, crossing passing, and blocking traffic;
• Height limit can be set on target, passenger baggage error can be filtered;

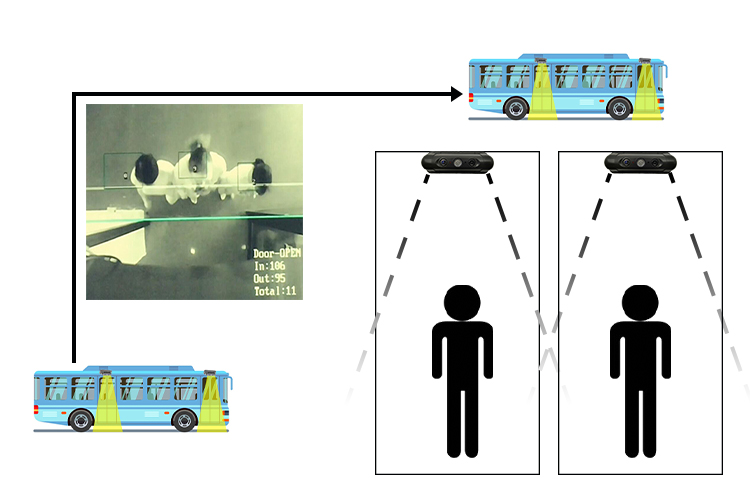

• With the status of the bus door switch as the trigger condition, it starts counting when door is opened, captures real time statistical data, and stops counting when door is closed;
• Possess strong scalability and portability, can be installed according to the number of vehicle doors;
• Unaffected by the season and weather, unaffected by figure shadows or shades, unaffected by external light, automatically activates infrared fill-in light at night to have the same recognition accuracy;

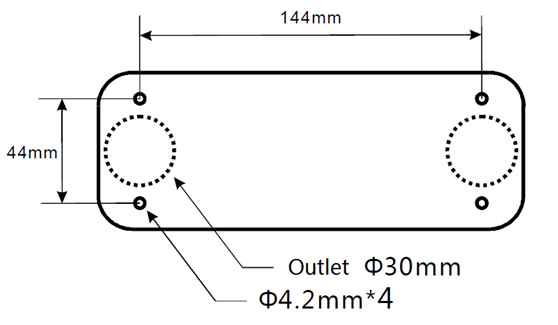

Easy to install, support 180°installation, strong environment adaptability

HPC168 3D Automatic passenger counting camera for bus adopts integrated design which combines depth camera and calculation main control board, so as to minimize interference factors on camera image information to the lowest level, and possibly to the uttermost decrease construction wiring difficulty level. The one-button debugging mode can quickly complete environmental parameters collection required by HPC168 counter , with no assistance from other equipment terminals.

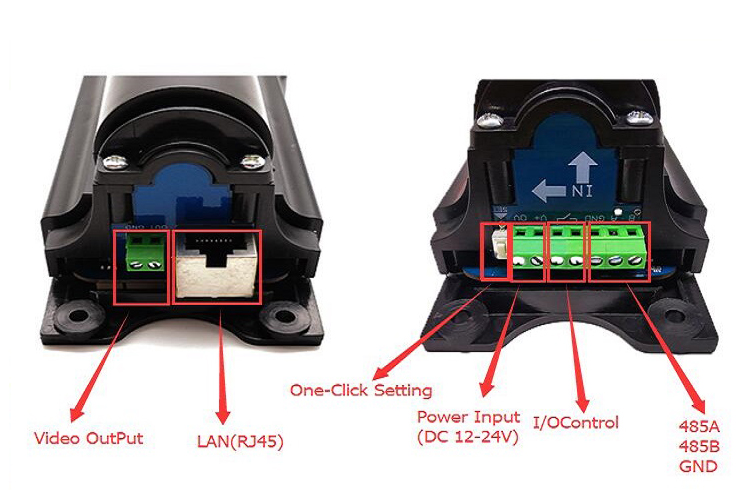

Data Interface for your intergration:

 1. RJ45 network interface

Via RJ45 interface and HPC168 counter connection, client tool program views or sets working status and operates parameters.

At the same time, HPC168 counter submits passenger flow data to the designated server in real time through RJ45 network interface.

2. Composite video output interface

Can be connected with vehicle-mounted display to visually display passenger counting results. Can also be connected with vehicle-mounted video recorder to save the passengers dynamic video of getting-on and getting-off in real time.

3. RS485 interface or RS232 interface

Provides one-way RS485 or RS232 for third-party equipment to conduct data calls, customizes baud rate and communication ID code.

4. Vehicle door switch signal

Can receive 8-36V voltage range vehicle door switch signal input. HPC168 counter stops counting once vehicle door is closed,

And automatically starts counting when vehicle door is opened.

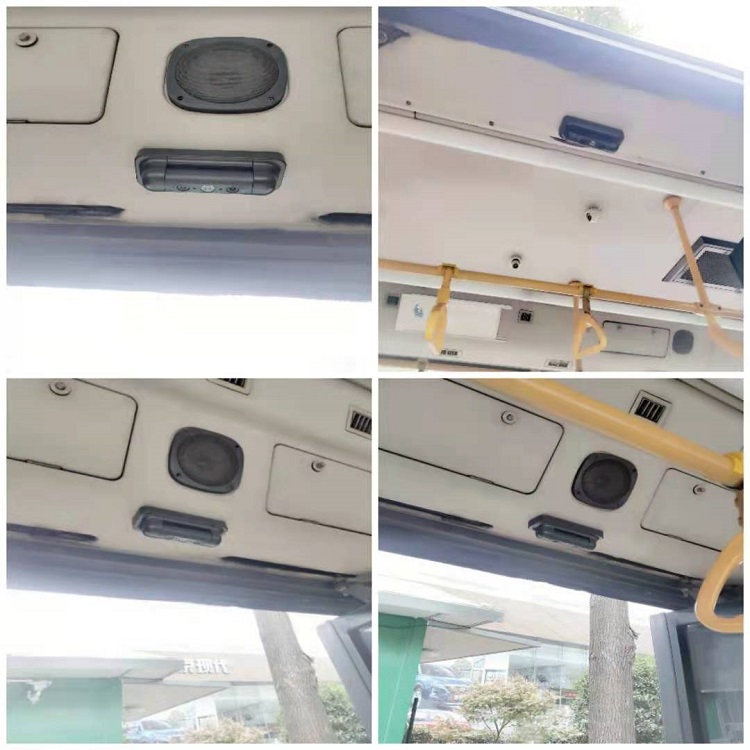

HPC168 3D Automatic passenger counting camera Live installation

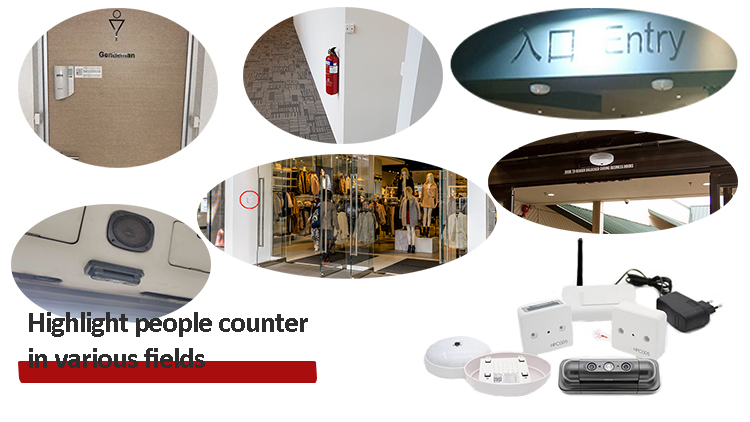

People counting History in Highlight

Highlight is one of the earliest people counter supplier in China. We initially developed the Infrared people counter, and then continued to update the products to our customers,

and gradually developed 2D camera people counter, 3D people counting camera, Bus passenger counter and AI people counter etc.

Our People counter system has high accuracy, easy installation, detailed reports and charts, and can be integrated into the POS system.

Now, we are searching for agents worldwide. For our agents, there are many privileges in terms of price and technical support.

Welcome to join us!
